About the conveyor belt kit

The Conveyor Belt Kit is a highly integrated modular component developed by Dobot for practical training. It supports various features includingautomatic material feeding, transportation, inspection and more.
Its high compatibility allows combined usage with a number of robots including the DOBOT MG400, CR series and Magician E6. By combining the use with Collaborative Robot Universal Training Platform and other components, users can benefit from enhanced training results as automation scenes can be easily simulated.

Por favor, complete la información a continuación para obtener más detalles sobre el producto.

Lightweight and Highly-integrated

Lightweight and Highly-integrated

With a lightweight and highly-integrated design, it can be set up on tables, floors and training systems by just tightening screws for quick deployment.

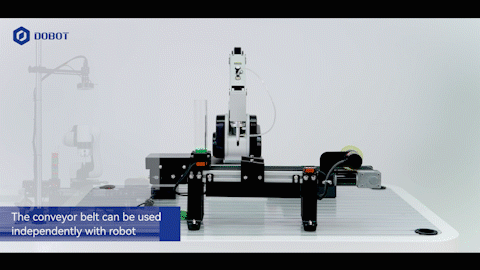

Various Combinations for Better Simulations

Various Combinations for Better Simulations

Works with the Collaborative Robot Universal Training Platform, CR series and Magician E6 and PLC modular components to simulate various scenarios, satisfying training needs.

Compact and Multifunctional

Compact and Multifunctional

Supports various functions such as automatic material feeding, checks for item and conveyor belt travel distance with real-time feedback on the accurate item position on the conveyor belt. It can collaborate with robots for precise picking. It also has a wide range of ports to support plug-and-play for easy operation.

¿Tienes preguntas? ¡Estamos aquí para ayudarte!

Nuestros expertos están listos para asistirte en la planificación de tu camino hacia el éxito en la automatización.
Pueden responder a todas tus preguntas relacionadas con Dobot, incluyendo:
√ Información sobre nuestro portafolio de productos y precios
√ Soluciones personalizadas que se adapten a las necesidades de tu negocio
√ Política de asociación de distribuidores y más…
Simplemente completa el formulario a la derecha o envíanos un correo electrónico a sales@dobot-robots.com.
Product Name Conveyor Belt Kit
Main Body Dimensions 583 ±8mm x 115mm x 180 ±5mm
Belt Dimensions 583 ±8mm x 55mm x 140 ±5mm
Power Input DC 24V
Current About 1A
Speed About 40mm/s
Automatic Loading Operates using linear actuator for 50 mm
Material Inspection Photoelectric sensor, inspection on the presence of material in 0 to 100 mm
Incremental Encoder Resolution 1000P/R
Output Signal ABZA/B/Z/ signal phasing
Diameter 40mm
Voltage DC 5V
Product certification CE, RoHS

* Los datos proporcionados arriba representan los resultados de las pruebas obtenidos por el Laboratorio Dobot bajo ciertas condiciones de prueba, y pueden presentar ligeras variaciones en comparación con los escenarios de aplicación reales.
