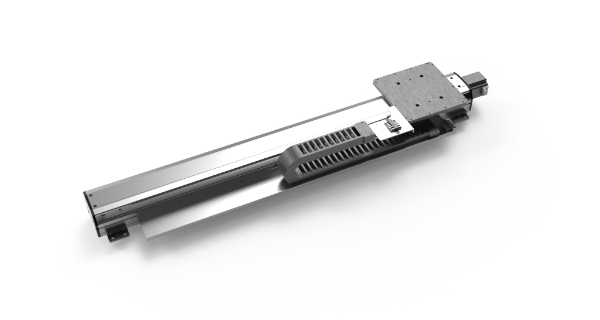

Sliding Rail Kit

Sliding Rail Kit

Accurate Performance at Large Scale Manufacturing

Póngase en contacto

Main Features

Extends the working space of MG400 and enables to perform large-scale tasks

The high-precision industrial sliding rail ensures that the robot runs smoothly and coherently

A complete set of hex screwdrivers makes it simple and easy to install

With a drag-chain cable carrier containing and protecting the cable, you can have a smooth user experience with all the wires set in good order



Por favor, complete la información a continuación para obtener más detalles sobre el producto.

¿Tienes preguntas? ¡Estamos aquí para ayudarte!

Nuestros expertos están listos para asistirte en la planificación de tu camino hacia el éxito en la automatización.
Pueden responder a todas tus preguntas relacionadas con Dobot, incluyendo:
√ Información sobre nuestro portafolio de productos y precios
√ Soluciones personalizadas que se adapten a las necesidades de tu negocio
√ Política de asociación de distribuidores y más…
Simplemente completa el formulario a la derecha o envíanos un correo electrónico a sales@dobot-robots.com.
Model Sliding Rail Kit
Dimension(mm) 1150× 230 ×90
Payload 20kg
Effective travel distance 800mm
Maximum speed 800mm/s
Maximum acceleration 1600 mm/s²
Repeat positioning accuracy ±0.1mm
Control method Modbus TCP
Power 200W
Lead screw 20 mm
Weight 15 kg
IP level IP20

* Los datos proporcionados arriba representan los resultados de las pruebas obtenidos por el Laboratorio Dobot bajo ciertas condiciones de prueba, y pueden presentar ligeras variaciones en comparación con los escenarios de aplicación reales.
